Visum HPR-S1

Portable real-time, in-line and continuous monitoring of quality control parameters

Download Datasheet

Portable NIR HyperSpectral Imaging (HSI) Analyser conceptualised to work where product information about chemical composition and spatial information is required at different locations in the factory.

HPR-S1 is a highly accurate system designed for industrial environments

Main features

  • Continuous and real-time monitoring
  • On surface foreign bodies detection
  • Fraud detection
  • Unexpected Anomaly Detection: Early warning in the event of unexpected changes in the product’s composition that cannot be detected by dedicated chemical analysis
  • Non-destructive testing
  • No sample preparation.
  • Product standardization.
  • Fraud detection
  • Reduction of production costs
  • Continuous analysis
  • Improvement of quality and safety.
  • Higher performance.
  • Fewer customer complaints.
  • Brand image protection.
Show Technical specifications Hide Technical specifications

Sensor

CMOS

Speed

60 m/min

Dimensions

1.8m x 1.9m x 1m

Capacity

30 ton/hour

Weight

200 kg

Consumption

2.000W

IP Protection

IP67

Configurations

Conveyors 400mm, 500mm & 600mm Width

PC

A7 Dual-Core ARM Ⓡ

User Interface

Touchscreen 15’’

Data Output

Profibus DP RS485, Modbus Ethernet (TCP/IP)

SOLUTIONS

Food

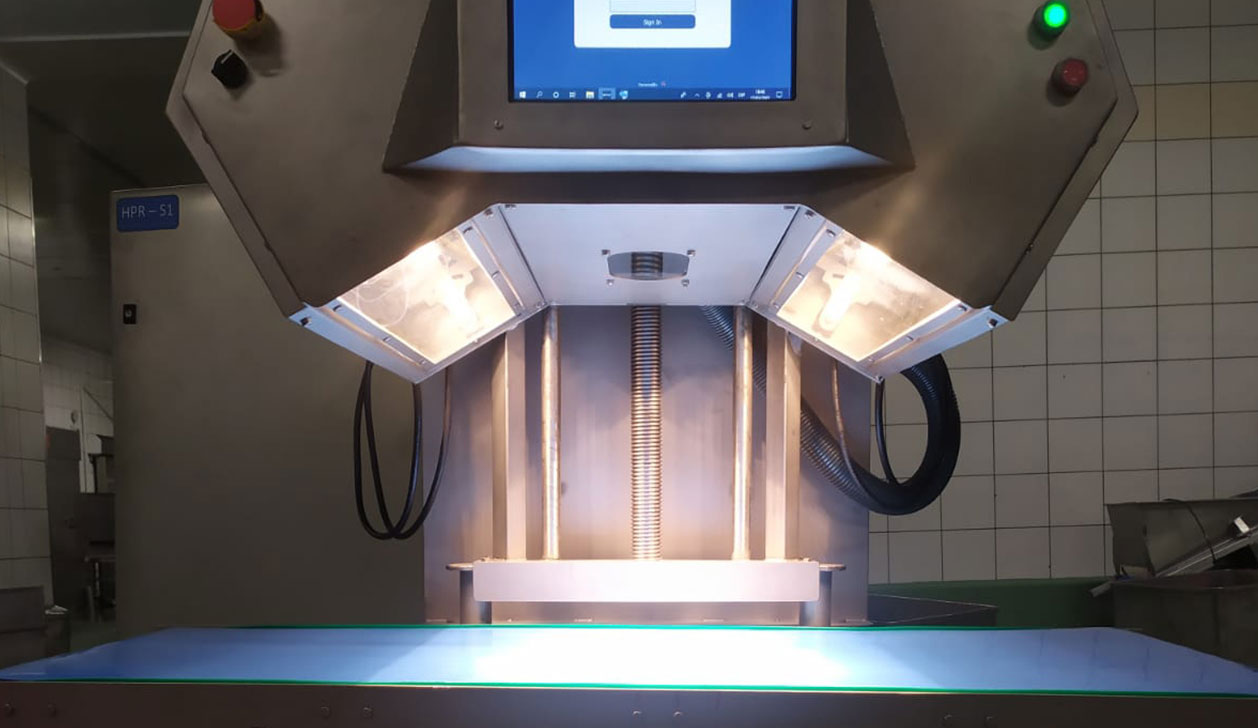

Industrial portable NIR HyperSpectral HSI Imaging analyser for meat composition real-time monitoring.

Meat Industry

Fat, moisture and protein content in minced meat
Fraud detection
Foreign bodies detection; plastics, cardboard, bones, cartilage and metal
