Visum NIR In-Line™ — Industrial NIR Analyzer

Industrial NIR Analyzer / FT-NIR Analyzer for Process Control and Continuous Real-Time Measurement

REQUEST A QUOTE

Process NIR & FT-NIR analyzer for real-time monitoring

Visum NIR In-Line™ is an industrial NIR / FT-NIR analyzer designed to continuously measure moisture, fat, protein, and other composition parameters in real time, directly on the production line. This NIR analyzer enables continuous monitoring of mixing and drying processes, as well as other critical quality parameters, helping manufacturers detect deviations and optimize production without interrupting the process.

Thanks to its versatility and different integration configurations, Visum NIR In-Line™ can be adapted to a wide range of products, processes, and applications across industries such as food and beverages, animal feed and nutrition, pharmaceuticals, chemicals, and polymers, including processes subject to GMP requirements.

Turnkey In-line Process Integration

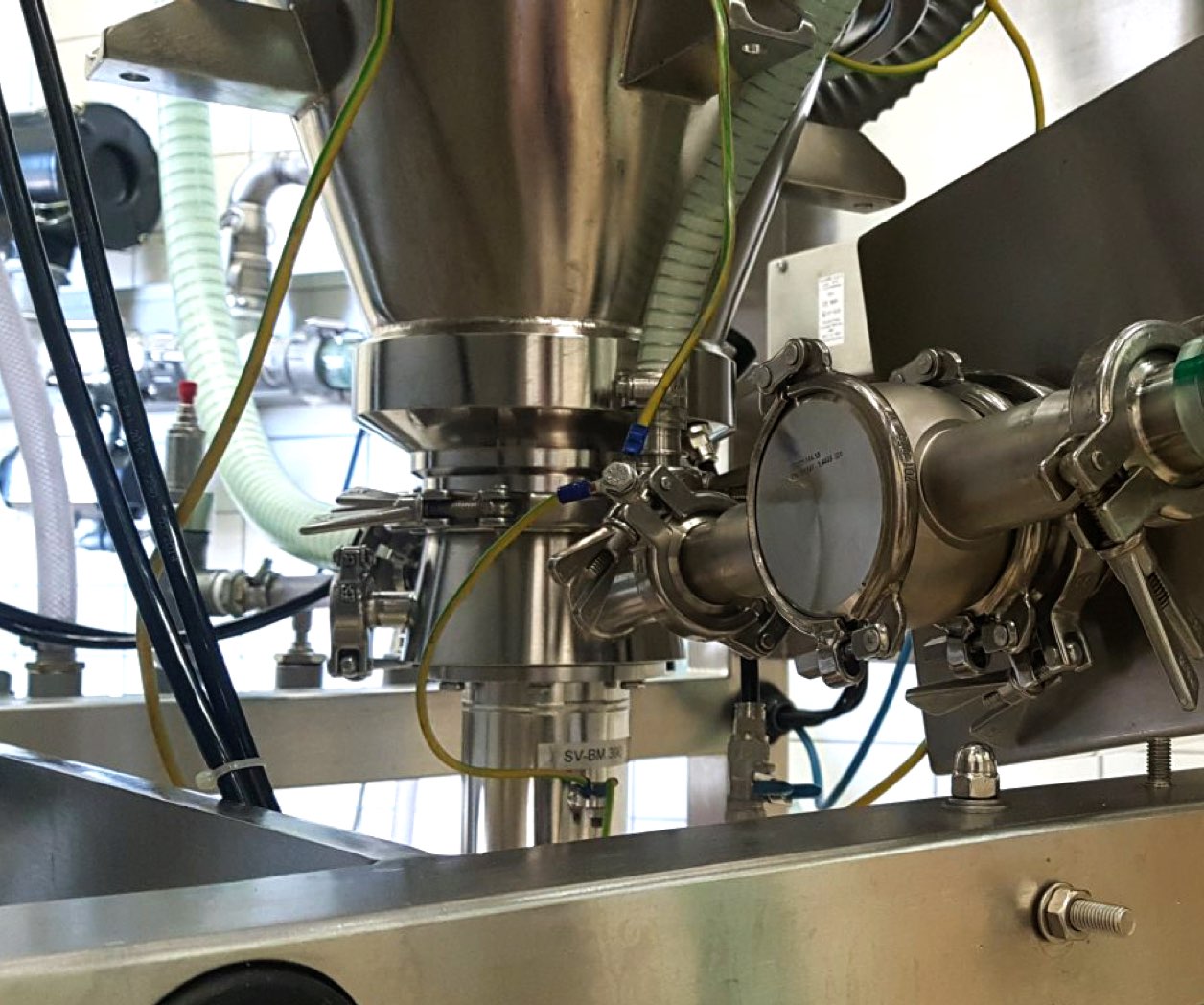

Visum NIR In-Line™ is a fully autonomous industrial NIR analyzer that integrates the sensor, computer, and software into a single compact and robust device. Available in NIR and FT-NIR configurations, it is designed for direct installation on existing production lines and processing equipment, minimizing process modifications and enabling fast commissioning and reliable continuous operation.

This inline NIR analyzer adapts to different process configurations, including mixers, conveyor belts, screw conveyors, pipes, reactors, tanks, and dryers, through different measurement geometries and integration options. It also supports communication with PLCs and industrial control systems, allowing analytical results to be directly integrated into process monitoring and automation.

Thanks to its flexible architecture, Visum NIR In-Line™ can be integrated into both conventional industrial installations and pharmaceutical environments subject to GMP requirements, providing a solution tailored to the technical and operational needs of each application.

nir_online
nir inline blending
  • Continuous, real-time measurement of multiple quality parameters
  • NIR (900–1700 nm) and FT-NIR (1100–2500 nm) configurations
  • Integration into conveyor belts, screw conveyors, pipelines, reactors, blenders, dryers, and tanks
  • Self-contained industrial system with PLC and process control system integration

Key Features of the Visum NIR In-Line NIR Analyzer

  • Fully self-contained industrial NIR / FT-NIR analyzer with embedded computer, sensor, and software.
  • Available in NIR (900–1700 nm) and FT-NIR (1100–2500 nm) spectral ranges.
  • Filter-free, multiparametric analysis for simultaneous measurement of multiple parameters.
  • Non-destructive, real-time analysis with no sample preparation required.
  • NIR analyzer designed for in-line installation on conveyor belts, pipelines, hoppers, reactors, blenders, dryiers and tanks.
  • Compatible with solids, powders, granulates, and liquids.
  • Adaptable to different process geometries, surfaces, and product flows.
  • Robust industrial design suitable for continuous operation in harsh environments.

NIR Analyzer Applications Across Industrial Sectors

Food & Beverage

  • In-line NIR analysis of juices, smoothies, purees, chocolate, dairy products, oils, sweets, olives, nuts, bakery products, baby food, food blends, and nutritional supplements.
  • Real-time monitoring of fat, moisture and viscosity during chocolate and confectionery production.
  • Continuous determination of Brix, pH-related parameters, and other quality indicators directly on the production line.
  • Improved process consistency, reduced waste, and faster quality decisions in food manufacturing.

Pharmaceutical & GMP

  • In-line identification and monitoring of raw materials, blends, and intermediates in pharmaceutical manufacturing.
  • Real-time control of critical quality attributes (CQAs) during blending, granulation, and drying processes.
  • Real-time end-point determination for mixing and drying processes.
  • Suitable for integration into validated processes and controlled production areas.

Animal Feed & Nutrition

  • Continuous monitoring of protein, moisture, fat, and fiber in animal feed production.
  • In-line control of raw materials, compound feeds, and pellets.
  • Early detection of deviations to ensure nutritional consistency and regulatory compliance.
  • Optimized formulations and reduced reprocessing in feed manufacturing.
  • Real-time end-point determination for mixing and drying processes

A NIR Analyzer for Other Industries

Technical Specifications Technical Specifications

SENSOR

InGaAs

SPECTRAL RANGE

NIR 900 - 1700 nm / FT-NIR 1100 - 2500 nm (optional)

ANALYZER TYPE

Fully self-contained industrial process NIR analyzer

SPECTRUM ACQUISITION TIME

Configurable from 450 μs

SPECTRAL RESOLUTION (↓ nm = ↑ spectral resolution)

5 nm

ACQUISITION GEOMETRY

Diffuse reflectance, interactance and transflectance according configuration

WEIGHT

∼8,53 kg (Standard) / ∼ 15 Kg (Probe Version)

DIMENSIONS

220x258x230 mm (Standard) 456x387x142 mm (Probe Version)

INGRESS PROTECTION

>IP66

POWER SUPPLY

24VDC. Consumption < 60 W

MATERIAL (ENCLOSURE)

AISI 304

LIGHT SOURCE LIFETIME

4,000 hours 1.5 years calculated at one reading every 10 seconds

BUILT-IN COMPUTER

Quad-core ARMv8®

USER INTERFACE

External-PC-based (for configuration and service tasks) HMI optional

OPERATION MODE

Slave / Continuous

CONNECTION TO THE PROCESS

Varinline® DN40–DN80, custom-designed for pipeline installations. Monitoring through a sapphire window module mounted on a Varinline® Type T flange for vessels, reactors, mixers, and dryers. Inspection using an immersion probe (reflectance, transmittance, or transflectance depending on the application)

MAX PRESSURE ON THE WINDOW (PROCESS SIDE)

16 bar (DN40 to DN80) / 10 bar (above DN80). Probe connection up to 100 bar (up to 300 bar with transflectance probe)

MATERIALS (INTERFACE WITH THE PROCESS)

Borosilicate glass and AISI 316L steel (others available)

SOFTWARE EMBEDDED

VISUM®

CALIBRATION SOFTWARE

VISUM MASTER™

CONNECTIVITY

Ethernet / Wi-Fi / Modbus / Profinet / Profibus / OPC-UA & others.
