Visum in-line

Real-Time Product Monitoring: In-Line and continuous measurements to improve process quality inspection

Download Datasheet

The VISUM InLine is a Industrial NIR analyzer for real-time and continuous chemical composition monitoring adapted to several types of geometries and unit operations (conveyor belts, pipes, tubes, etc.) and unit process machinery (e.g. blenders).

VISUM InLine is a robust inspection system designed for harsh industrial environments

Main features

  • Continuous monitoring of Critical Quality Attributes (CQAs) ensuring measurement of all the product units.
  • Real-time and simultaneous measurement of Critical Control Parameters (CCPs) for keeping the production process under control.
  • Fraud detection
  • Unexpected Anomaly Detection: Early warning in the event of unexpected changes in the product’s composition
  • Non-destructive testing.
  • No sample preparation.
  • Product standardization.
  • Reduction of production costs
  • Improvement of quality and safety.
  • Higher performance.
  • Fewer customer complaints.
  • Brand image protection.
Show Technical specifications Hide Technical specifications

Sensor

InGaAs Photodiode array

Spectral Range

900 - 1700 nm

Typical single spectrum acquisition time

10 ms

Spectral Resolution

3 nm

Weight

14 kg

Dimensions

325 x 243 x 240 mm3

Ingress protection

IP65

Power supply

230 VAC (1-phase). Consumption < 100W

Material (enclosure)

AISI 304

Light source lifetime

1 year (standard use)

Built-in computer

A7 Dual-Core ARM Ⓡ

Basic connectivity

Ethernet (TCP/IP)

User interface

External PC-based (for configuration and service tasks)

Data output

Ethernet (TCP/IP), Profibus DP RS485

Operation mode

Slave / Continuous

Connection to the process

Insertion flange for Varinline ® Type N Housing from OD 1 ½’’ to OD 3’’ (DN40 to DN80) pipe diameter

Max pressure on the window (process side)

16 bar

Materials (interface with the process)

Borosilicate glass and AISI 316L steel

SOLUTIONS

Food
Pharma
Other industries

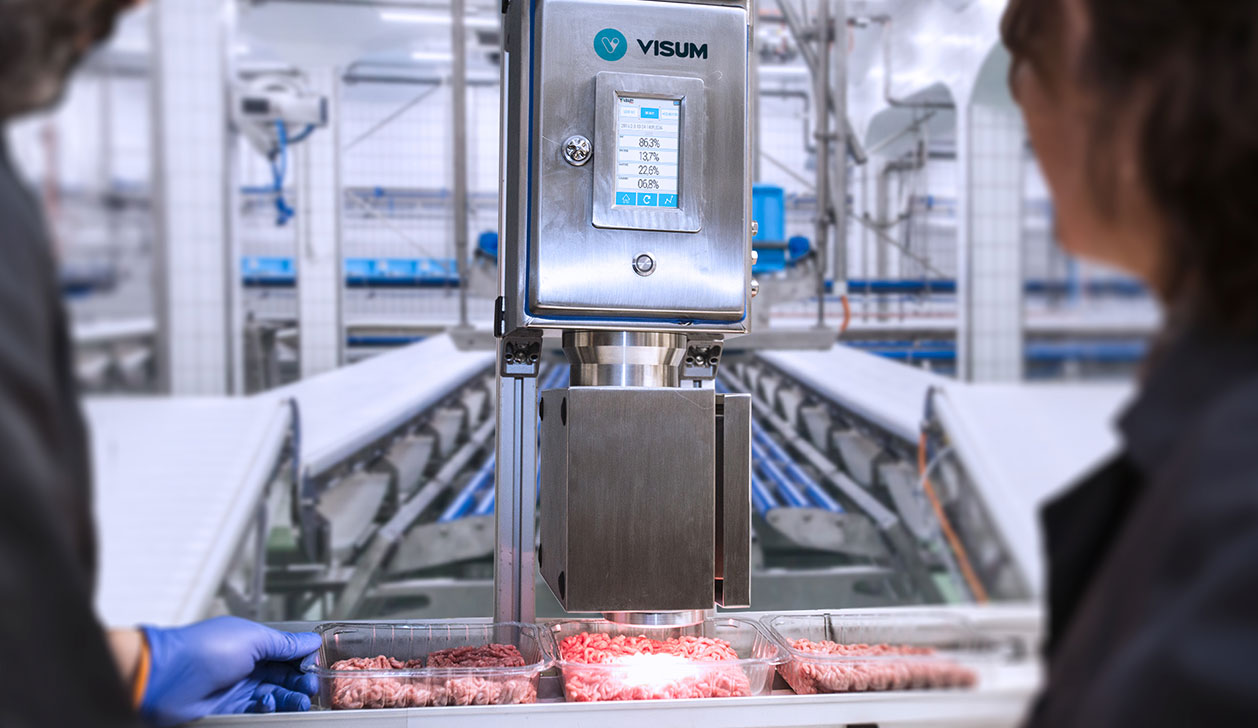

Industrial InLine NIR device for quality control and product standardisation

Powders; flour, cocoa, etc.

Fraud detection
Moisture and protein content

Milk, Juice

Moisture and protein content
Water and protein content monitoring

Oil

Routine quality control of edible oils by-products: water-in-oil, water-in-marc, oil-in-marc
Total acidity and polar compounds concentration in frying oil

Industrial InLine NIR PAT Device for Critical Process Parameters (CPP) monitoring along the line

Process Control

API content uniformity
Blending and drying end-point determination

Industrial InLine NIR device for Quality Control Monitoring and Critical Process Parameters (CPPs)

Petrochemical

Polymers identification
SWIR-dye-inked black polymers classification

Other

Ethanol & sugar concentration during fermentation process
